PM-212-MPO Pocket Optical Power Meter USB Probe

Download PDF

Price Upon Request

The PM-212-MPO optical power meter is a small, pocket size low cost item. The small size does not prevent the optical meter fulfilling all technical requirements for field equipment. The tester can be used as pocket power meter or as USB probe, part of testing workstation. The unit can be easily carried in the pocket or on the belt.

There are two versions for simultaneous measurement:

12/24 multifiber MPO/MTP connectors
16/32 multifiber MPO/MTP connectors

The Li-Pol rechargeable battery ensures long term working time with a minimum life time of 2 years. The unit is able to store 100 measurements which can be uploaded to PC and managed with SmartProtocol software or Data Exporter.

Features:

• Two functions:
  • Portable power meter
  • USB probe – accesssory of Testing Workplace
• MPO/MTP connector: 12/24 or 16/32 fibers
• Multimode applications
• Small size, light weight
• Absolute and Relative optical power measurement
• Internal two level memory structure
• Capacity up to 100 measurements
• SmartProtocol SW – test reports creating
• Data Exporter – data download to Excel sheet
• USB port for:
  • USB probe – full control via simple commands charging the battery
  • data upload to PC
  • firmware upgrade
• Build-in Li-Pol rechargeable battery pack
• Auto Off, battery status indicator

Standard accessories:

• Power meter
• MPO/MTP input adapter
• Power charging adapter
• Traceable calibration certificate
• USB cable
• Hard carry case (TE-HC-01)
• SmartProtocol SW

Optional

• Master MPO patchcord1

Application:

• Optical components testing
• Optical networks measurement
• Test reports creating

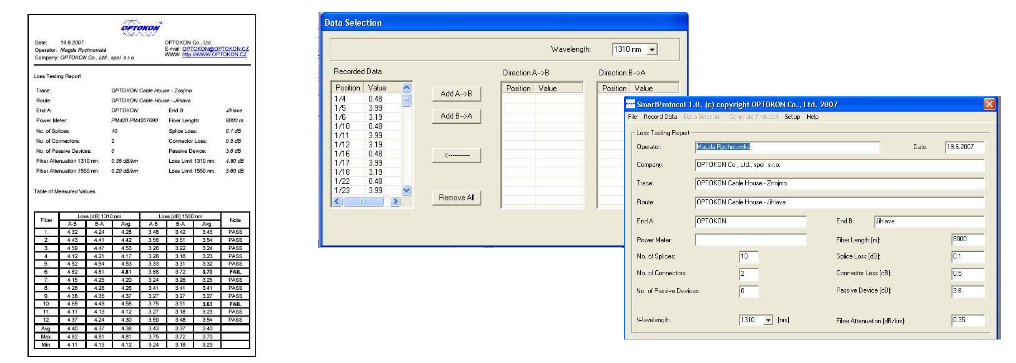

SmartProtocol compatible (refer to TEQ_02-07_EN-SmartProtocol)

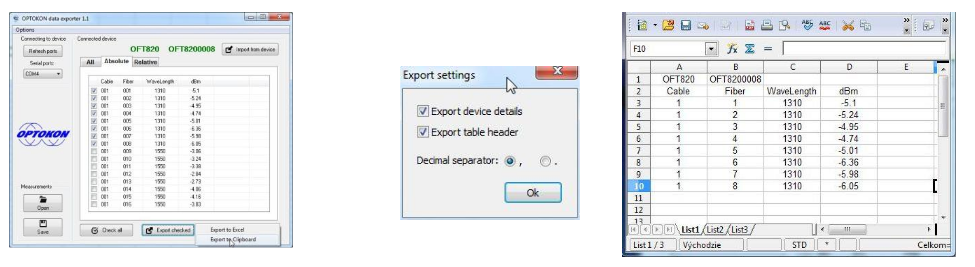

DataExporter compatible (refer to TEQ_08-13_EN-DataExporter)
